NSR Supporting 51 to 150 people


Features

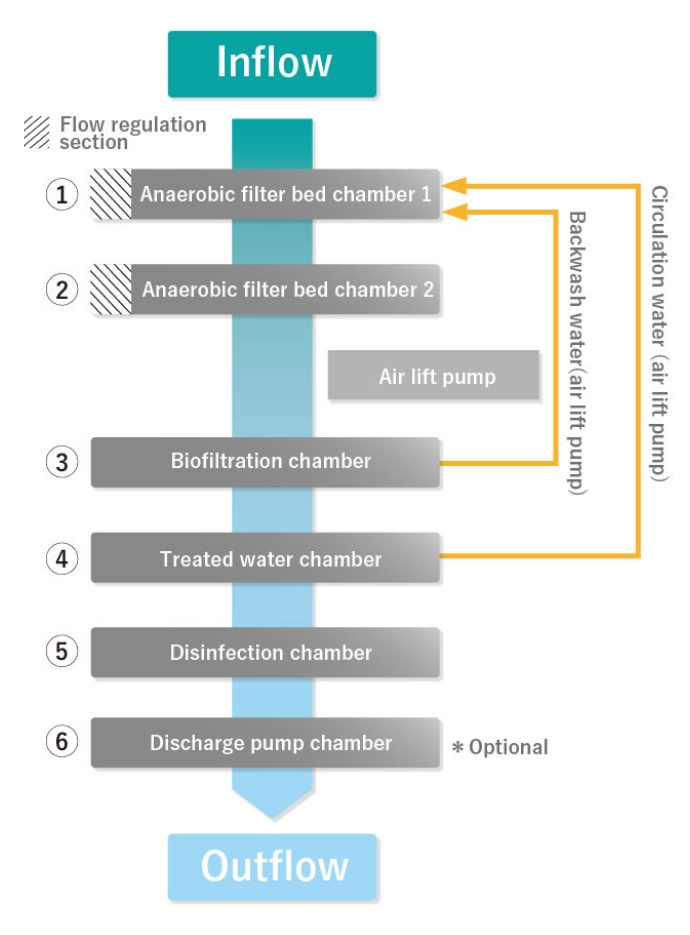

Consistent Water Quality Enabled by Flow Regulation
A flow regulation section is built in to moderate peak inflow periods—such as during meals and bathing—by evening out fluctuations in household wastewater.
This helps ensure a steady flow to the biofiltration chamber, resulting in stable and reliable water quality.
Specifications
Number of Users for Design | 51 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 |
---|---|---|---|---|---|---|---|---|---|---|---|
Average daily wastewater inflow (㎥/day) | 10.2 | 12.0 | 14.0 | 16.0 | 18.0 | 20.0 | 22.0 | 24.0 | 26.0 | 28.0 | 30.0 |
Tank length (㎜) | 4,420 | 4,930 | 5,540 | 6,140 | 6,730 | 7,350 | 8,860 | 9,460 | 10,040 | 10,690 | 11,380 |
* The tank length measurement does not include the raw water pump chamber.

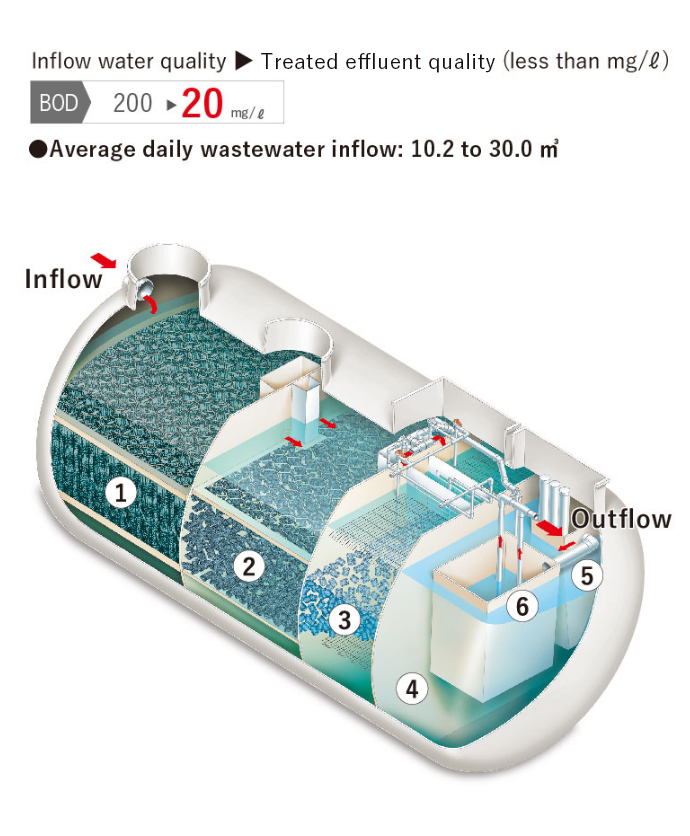

Drawing example
Supporting 51 to 150 people
