NSA-14〜50
Features

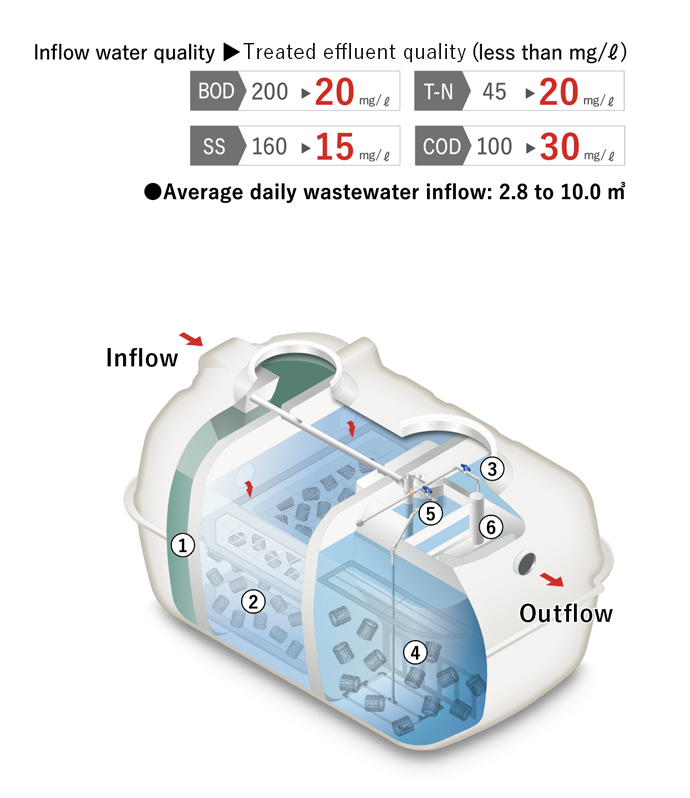

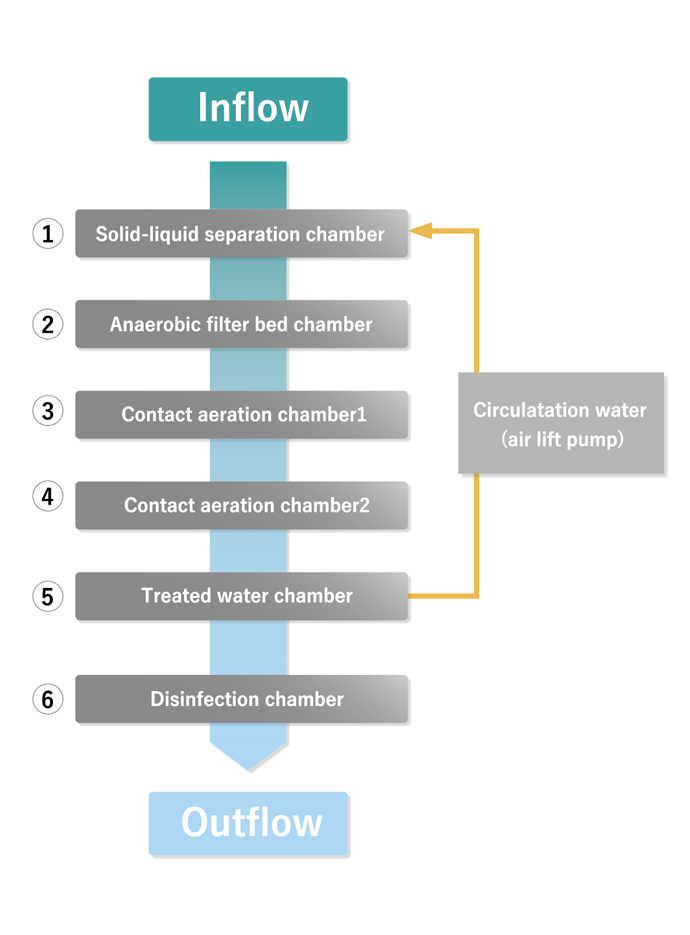

Low-Depth Design Improves Workability
The NSA type features one of the shallowest installation depths in its class compared to equivalent models from other manufacturers.
This design helps reduce the risk of groundwater inflow or contact with bedrock, leading to approximately a 15% reduction in excavation volume.
Additionally, the simplified contact aeration structure ensures easier maintenance.
Specifications
| Model | NSA-14 | NSA-16 | NSA-18 | NSA-21 | NSA-25 | NSA-30 | NSA-35 | NSA-40 | NSA-45 | NSA50 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Users for Design | 14 | 16 | 18 | 21 | 25 | 30 | 35 | 40 | 45 | 50 | |
| Average daily wastewater inflow (㎥/day) | 2.8 | 3.2 | 3.6 | 4.2 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 | 10.0 | |
| Capacity (㎥) | Solid-liquid separation chamber | 1.006 | 1.482 | 2.107 | 2.458 | 2.804 | 3.170 | 3.509 | |||
| Anaerobic filter bed chamber | 1.485 | 2.219 | 3.158 | 3.687 | 4.212 | 4.737 | 5.261 | ||||
| Contact aeration chamber1 | 0.568 | 0.846 | 1.209 | 1.407 | 1.624 | 1.816 | 2.008 | ||||
| Contact aeration chamber2 | 0.392 | 0.588 | 0.822 | 0.953 | 1.082 | 1.215 | 1.338 | ||||
| Treated water chamber | 0.367 | 0.535 | 0.756 | 0.882 | 1.020 | 1.146 | 1.272 | ||||
| Disinfection chamber | 0.030 | 0.044 | 0.063 | 0.073 | 0.105 | ||||||
| Total capacity | 3.848 | 5.714 | 8.115 | 9.460 | 10.847 | 12.189 | 13.493 | ||||
| Dimensions (㎜) | Overall length (L) | 2,650 | 3,770 | 3,870 | 4,440 | 4,280 | 4,750 | 5,210 | |||
| Overall width (W) | 1,710 | 2,050 | 2,220 | ||||||||
| Overall height (H) | 1,580 | 1,830 | 2,050 | ||||||||
| Inflow pipe base (A) | 400 | 450 | 500 | ||||||||
| Outflow pipe base (B) | 500 | 550 | 600 | ||||||||
| Manhole diameter (mm) & Number used | Φ450×1,Φ600×1 | Φ450×2,Φ600×1 | Φ450×3,Φ600×1 | ||||||||
| Blower flow rate (ℓ/min) | 100 | 150 | 200 | 250 | 300 | ||||||
| Standard mass of apparatus (kg) | 350 | 480 | 650 | 740 | 790 | 830 | 910 | ||||
Drawing example
Supporting 5 to 10 peoples
